    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

    Ask Lasest Price
    Brand Name : 3A
    Supply Ability : 10 Set/Sets per Month
    Price : $21,000.00/sets >=1 sets
    • Product Details
    • Company Profile

    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

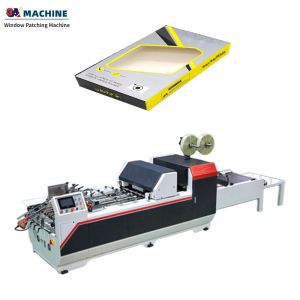

    650S Window Patching Machine
    Full-automatic High-speed


    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Hob cutting film + Single group film applicator
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching


    1.Producible Box Sample

    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

    Cake box
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

    Corrugated carton


    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

    General box

    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

    Paper towel box


    2.Function

    lHob cutting film + Single group film applicator lServo motor paper feeding lServo motor film feeding lPaper receiving stepper with batch counting lPaper vacuum adsorption transport lDouble sheet / empty sheet gluing rising automatically lPaper length L ＜ 260mm double sheet mode The following functions are optional and need to be upgraded for a fee. Please confirm whether to purchase them before purchasing Follow lable of film printing surface(optional) Film with punching holes (optional) Tissue box film middle cut (optional)


    3 . Specifications

    Model
    650S
    Max .Paper Size
    W650 x L550 mm
    Mini .Paper Size
    110x110mm
    Paper gram above
    Kraft Paper：150-1200g/㎡
    White Cardboard ：230-1200g/㎡
    Corrugated Paper：≤3mm
    Max .Film
    W290 x L300 mm
    Mini .Film
    W30xL50mm
    Film Thickness
    CPE/PE:0 . 1-0 . 3mm
    PVC:0 . 08-0 . 25mm
    APET/PET:0 . 06-0 . 2mm
    Max .Film Unwinding Diameter
    400mm
    Paste error
    ±2mm
    Maximum Speed
    Paper L≤260mm ：30000pcs/h
    Paper L＞260mm ：15000pcs/h
    Servo Motor
    Driving part ：Paper feeding department 1 set
    film delivery department 1 set
    Stepping Motor
    Driving Parts ： Automatic paper receiving 1 set
    Machine Size
    L540 x W130 x 160cm
    Power
    380/415V 50/60Hz 5KW
    Overall Weight
    1800kg


    4 .Partial introduction


    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper feeding department :
    Adopt belt feeding paper ,it is suitable for coated,reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.
    Operating interface :
    All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button .
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper correction track ：
    Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation .
    Vacuum adsorption ：
    Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting . It runs steadily at high speed and has high precision .
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper collecting department
    Single stepper motor controls theoperation of paper collecting belt .Paper-folding distance can be adjusted wholly or segmentally and run at multi-speed .
    Rolling cutting and absorbing of thin film：
    Film cutting hob is a local sectional design. Compared with traditional whole section cutting,it has lower noise,less vibration,more convenient tool adjustment and tool change. Adding back spring prevents the occurrence of stuck knife problem.
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Synchronized transmission：
    All drives are driven by synchronous wheels and synchronous belts with low mechanical noise and high accuracy.
    Electrical control
    Adopting domestic listed companies' first-line brand "Xinjie" servo drive system and "lnovance" frequency conversion speed regulation system, the stability is high
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
    Machine installation project：
    1. Paper towel box film opening device can be installed to open or cut off the local film. 2. A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same


    5 . Configuration list



    The name of an article
    Brand
    Place of production
    Servo motor
    XINJIE
    jiangsu
    Inverter
    lnovance
    shenzhen
    Main motor
    Cross
    Shanghai
    Regulated power supply
    OMRON
    Japan
    Vibrating motor
    OLI
    dongguan
    Roll rubber machine
    ADDKA
    Taiwanjoint
    Pump
    GEBIAO
    TaiZhou
    Human Machine Interaction
    XINJIE
    jiangsu
    Low voltage electrical appliance
    People
    electric appliance
    Shanghai
    PLC
    XINJIE
    jiangsu
    Feed belt
    Fu Di
    Guangzhou
    5 m PVC belt conveyor (blue)
    Farman
    Shanghai manufacturing
    Perforated PVC belt (blue)
    Farman
    Shanghai manufacturing
    Heavy duty rolling bearing
    NSK
    Japan
    Light load rolling bearing
    HRB
    Harbin
    Synchronous Belt
    SUBAKE
    China Taiwan
